Space Shuttle Discovery at the Smithsonian's National Air & Space Museum Steven F. Udvar-Hazy Center
Chantilly, Virginia - 13 & 16 July 2012
Page Three of Four

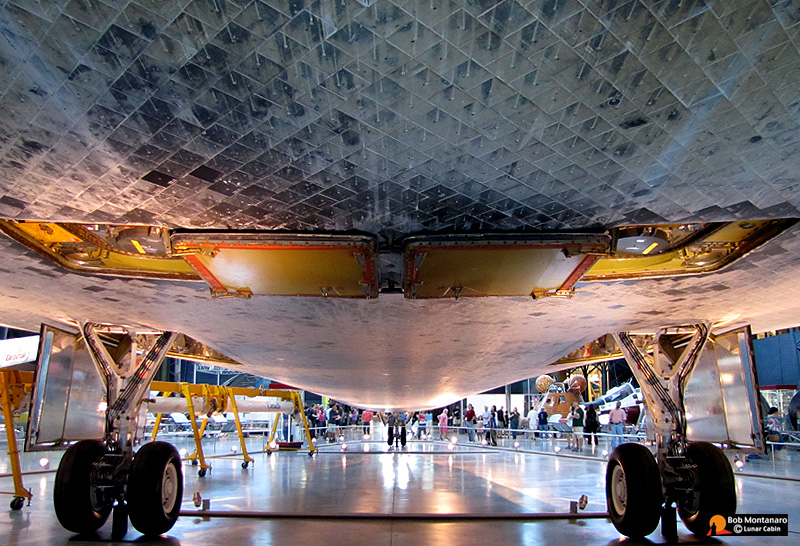

Underneath Discovery looking forward. The open doors reveal umbilical cavities where liquid oxygen and liquid hydrogen from the External Tank would flow into Discovery to feed the Main Engines. Each of the main fuel feedlines, the round gold colored cap seals the line seen better in the image below, is 17 inches across. During an average launch, approximately 16,800 gallons a minute of liquid oxygen and approximately 45, 283 gallons a minute of liquid hydrogen would flow through these lines into the Main Engines. The doors are closed and sealed after External Tank separation.

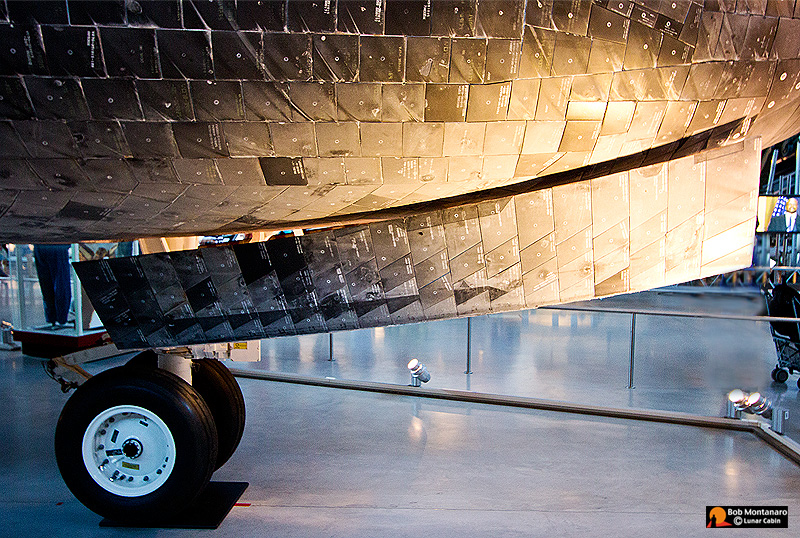

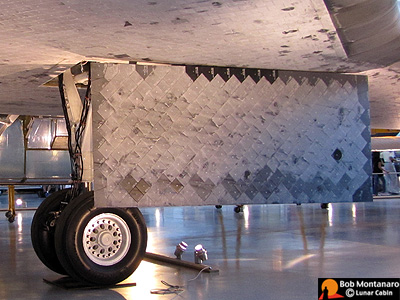

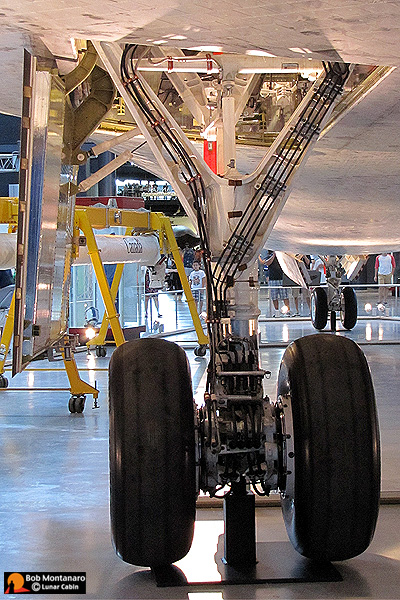

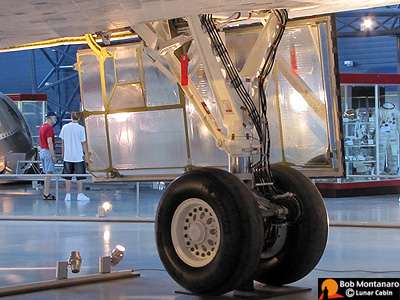

Views of the rear landing gear.

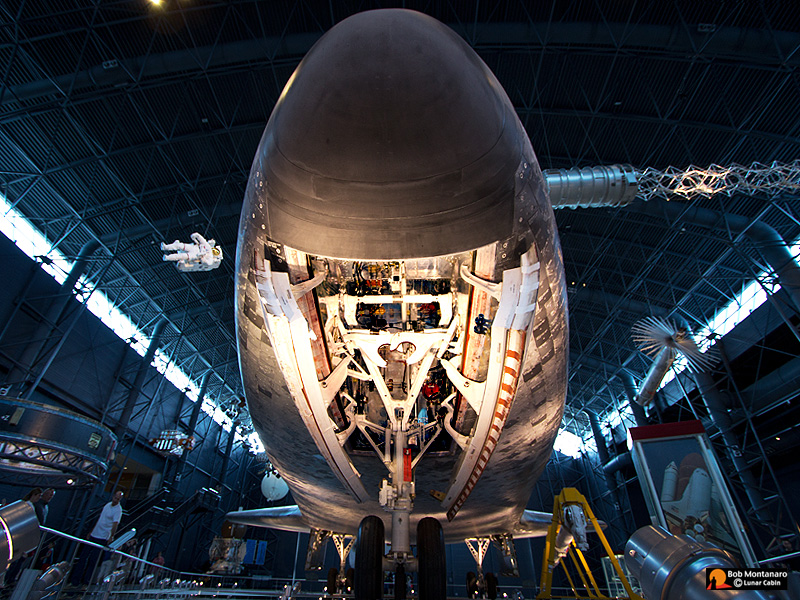

Looking up into the wheel well of the nose gear.

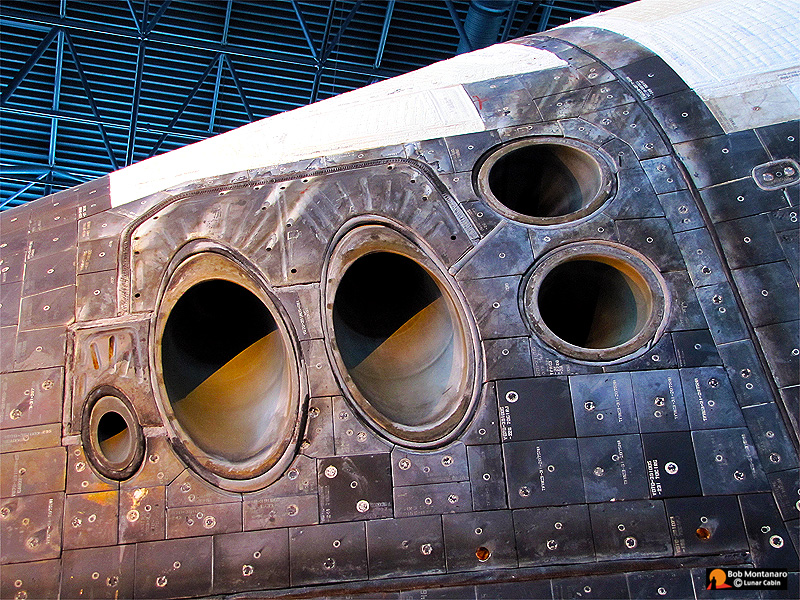

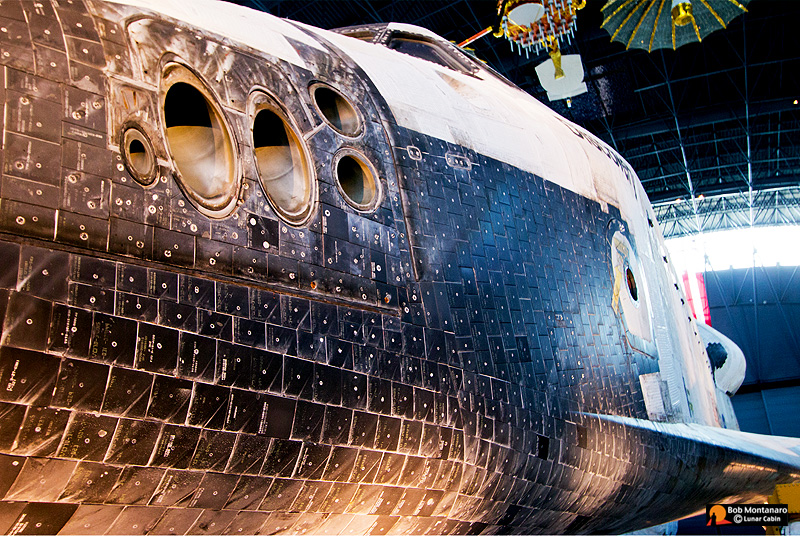

Views, above and below, of some of the forward Reaction Control System jets in Discovery's nose used to maneuver Discovery in space.

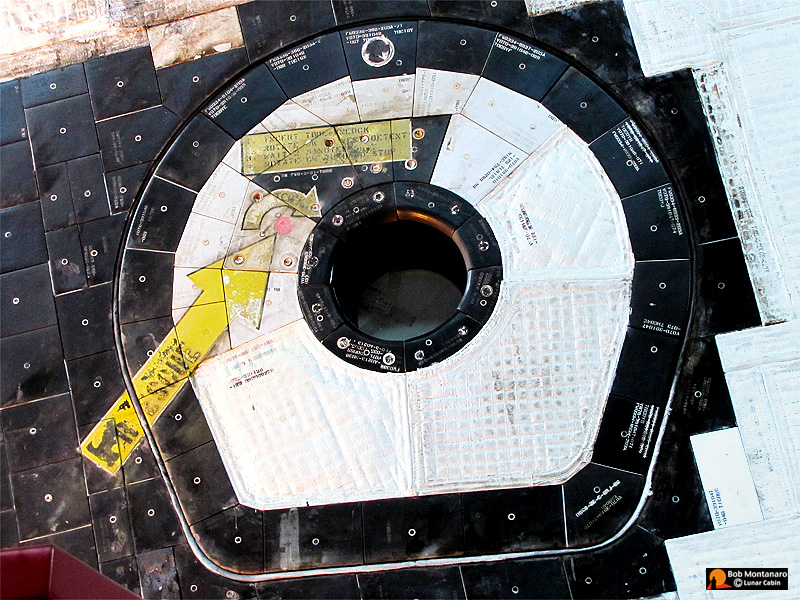

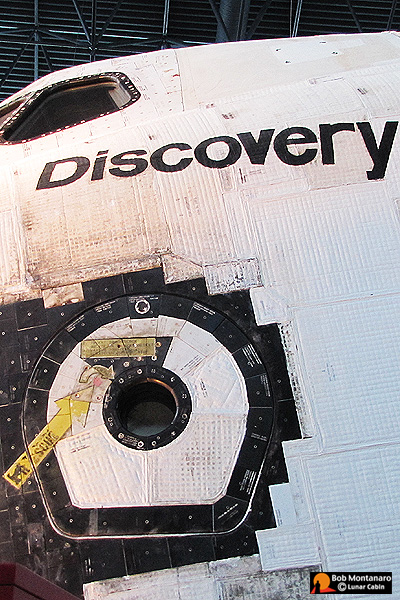

Discovery's Main Hatch through which astronauts would board the vehicle at launch and exit after landing.
