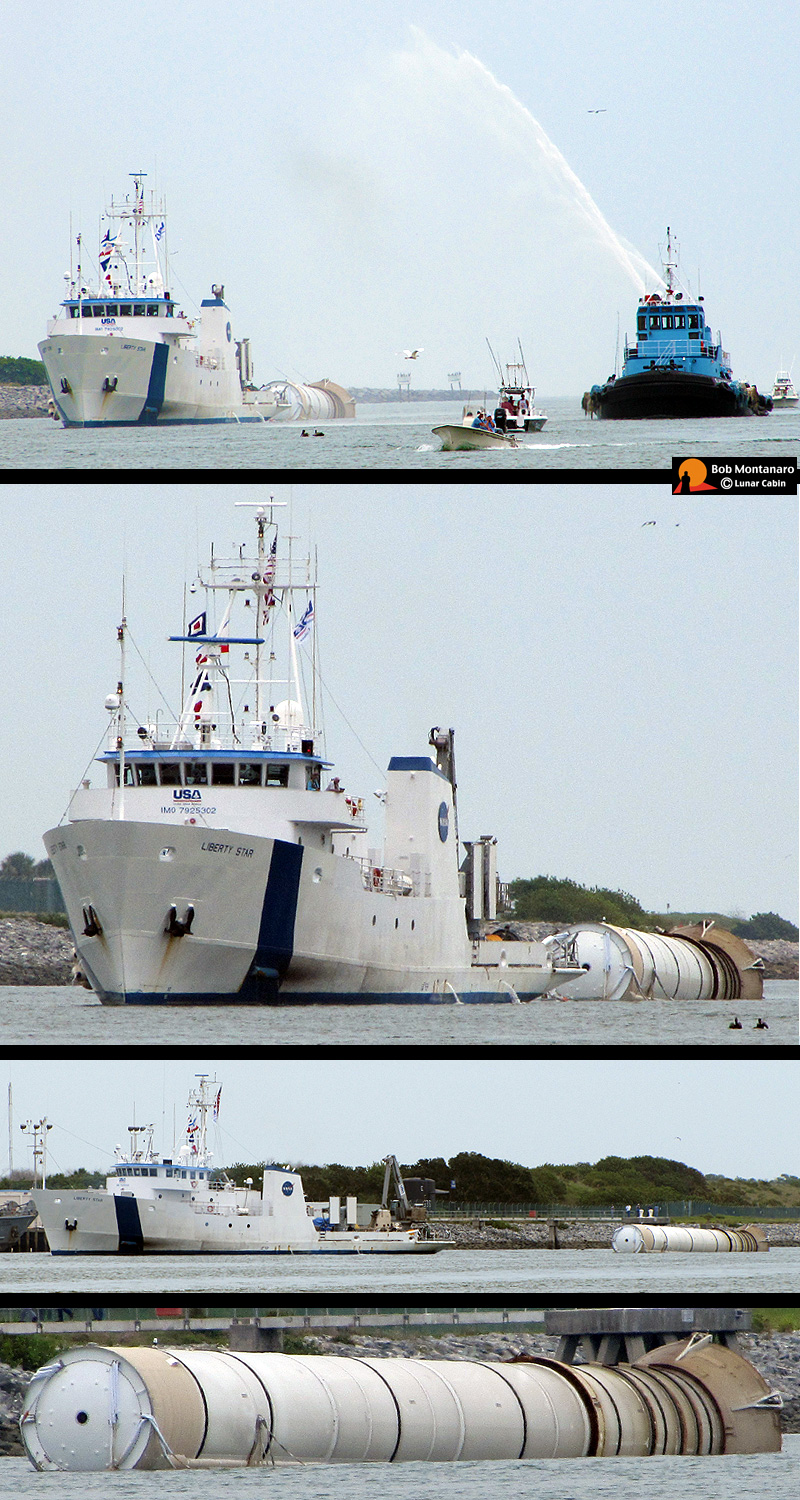

Another Space Shuttle Program operation passes into history on 10 July 2011 as the ships Liberty Star and Freedom Star return to Port Canaveral towing the Solid Rocket Boosters used to launch Atlantis into orbit two days earlier. The images below show a tug welcoming Liberty Star into port with a fountain of water, along with other images showing the SRB in tow.

Some interesting facts about the Solid Rocket Boosters condensed out of the STS-135 press kit:

The SRBs have the capacity to carry the entire weight of the External fuel Tank (ET), and orbiter, and to transmit the weight load through their structure to the Mobile Launcher Platform (MLP).

The SRBs provide 71.4 percent of the thrust required to lift the space shuttle off the launch pad and during first-stage ascent to an altitude of about 150,000 feet, or 28 miles. At launch, each booster has a sea level thrust of approximately 3.3 million pounds and is ignited after the ignition and verification of the three Space Shuttle Main Engines (SSMEs). SRB apogee occurs at an altitude of about 230,000 feet, or 43 miles, 75 seconds after separation from the main vehicle. At booster separation, the space shuttle orbiter has reached an altitude of 24 miles and is traveling at a speed in excess of 3,000 miles per hour.

SRB impact occurs in the ocean approximately 140 miles downrange. SRB retrieval is provided after each flight by specifically designed and built ships. The frustums, drogue and main parachutes are loaded onto the ships along with the boosters and towed back to NASA’s Kennedy Space Center, where they are disassembled and refurbished for reuse. Before retirement, each booster can be used as many as 20 times. Each booster is just over 149 feet long and 12.17 feet in diameter. Both boosters have a combined weight of 1,303,314 pounds at lift-off. < < < Back to Page One of Two
